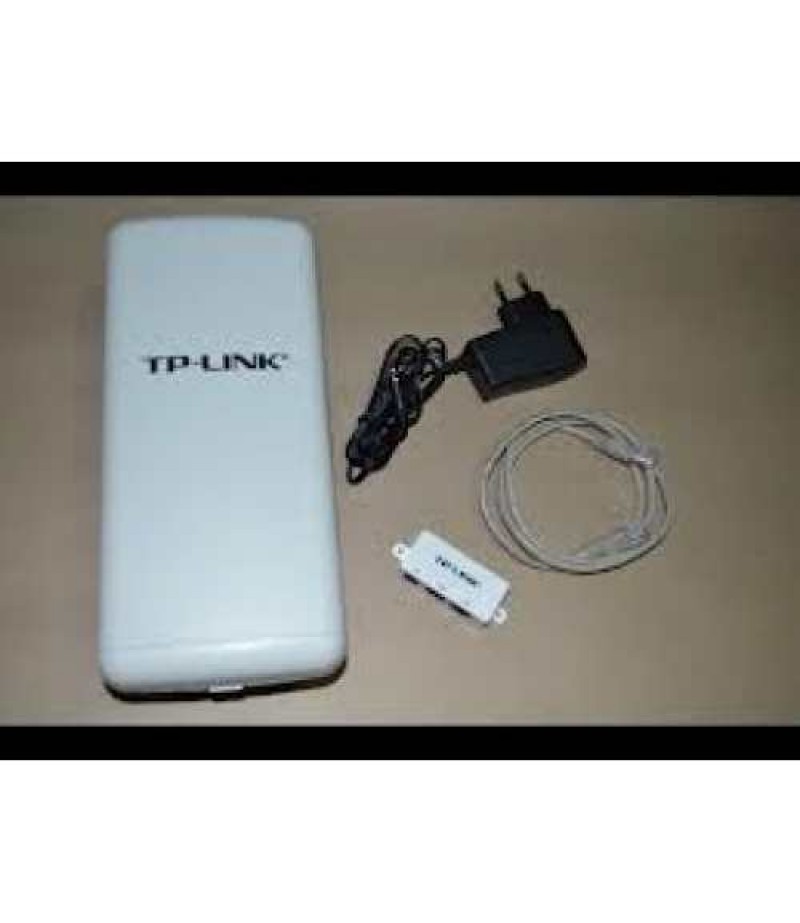

TPLINK 2.4GHz High Power Wireless Outdoor CPE TL-WA5210G
- Brand: OEM
- Model TPLINK TLWA5210G
- Availability: Out Of Stock
| HARDWARE FEATURES | |
|---|---|
| Interface | 1 10/100Mbps Auto-Sensing RJ45 Port(Auto MDI/MDIX, PoE) 1 External Reverse SMA Connector One Grounding Terminal |
| Button | Reset Button |
| External Power Supply | 12VDC / 1.0A Linear PSU |
| Wireless Standards | IEEE 802.11g, IEEE 802.11b |
| Antenna | 12dBi Dual-Polarized Directional Antenna |
| Dimensions ( W x D x H ) | 10.4 × 4.7 × 3.2 in. (265x120x83mm) |
| Antenna Beamwidth | Horizontal: 60° Vertical: 30° |
| Protection | 15kV ESD Protection, 4000V Lightning Protection Grounding Terminal Integrated |
| WIRELESS FEATURES | |
|---|---|
| Frequency | 2.4-2.4835GHz |
| Signal Rate | 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| EIRP | <20dBm (EIRP, For countries using CE Standards) <27dBm (Peak Output Power, For countries using FCC Standards) |
| Reception Sensitivity | 802.11g 54M: -76dBm 48M: -78dBm 36M: -82dBm 12M: -91dBm 9M:-92dBm 802.11b 11M:-90dBm 5.5M:-92dBm 1M:-98dBm |
| Wireless Modes | AP Router Mode AP Client Router Mode (WISP Client) AP/Client/WDS Bridge/Repeater mode |
| Wireless Functions | WDS Bridge, Wireless Statistics |
| Wireless Security | SSID Enable/Disable MAC Address Filter 64/128/152-bit WEP Encryption WPA/WPA2/WPA-PSK/WPA2-PSK (AES/TKIP) Encryption |
| Wireless Range | 5km with Integrated Antenna 15km Maximum (High gain directional antenna required) |
| Advanced Functions | Up to 60 meters PoE is supported Provides 4-level signal LED indicator |
